Isolation cells

Posted on Edited on In

Isolation cells are additional cells inserted by the synthesis tools for isolating the buses/wires crossing from power-gated domain of a circuit to its always-on domain (AON).

To prevent corruption of always-on domain, we clamp the nets crossing the power domains to a value depending upon the design.

A simple circuit having a switchable (or gated) power domain

isolation-cells-1-1

The circuit shown in Figure 1, after isolation cells are inserted

isolation-cells-2

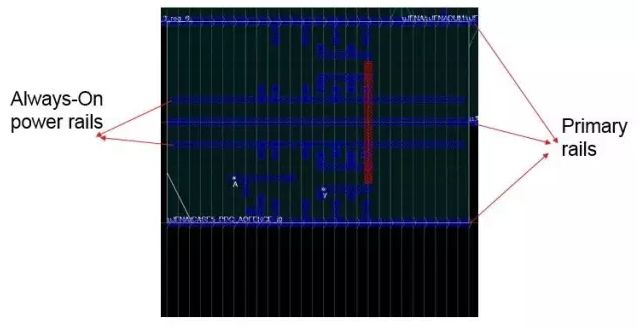

Always-On Buffer

640?wx_fmt=png

image-20230211001607578

image-20230211001708189

image-20230211001849150

reference

Isolation cells and Level Shifter cells URL: https://vlsitutorials.com/isolation-cells-level-shifter-cells-low-power-vlsi/
