Windowing Technique for Accurate DFT

Posted on Edited on In

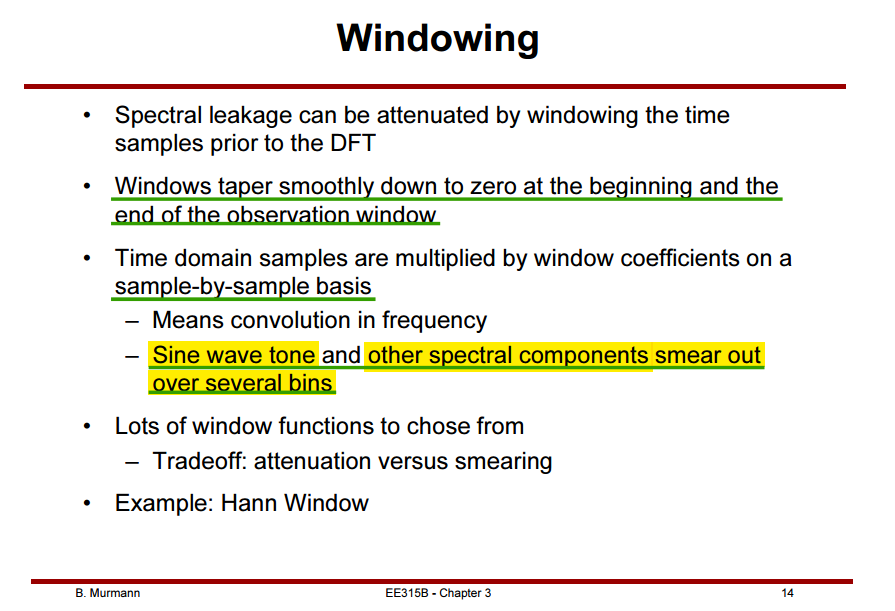

A finite-length data record = an infinite record multiplied by a rectangular window

Windowing is unavoidable

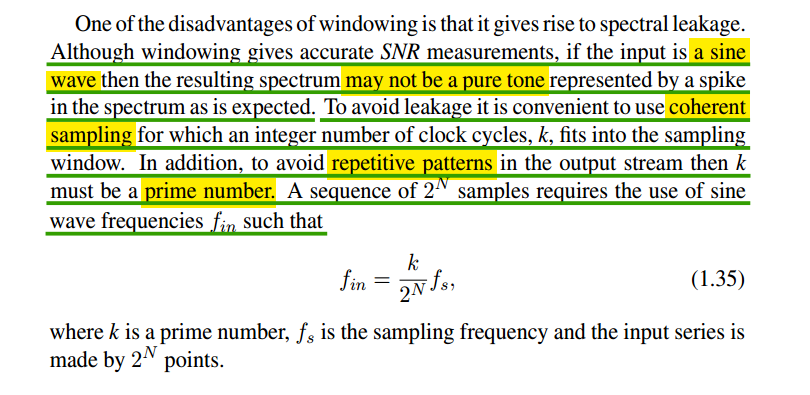

Applying the Hanning window (or any window) to a periodic signal creates leakage.

leakage:

​ The component at one frequency leaks into the vicinity of another compnent owing to the spectral smearing introdued by window.

Notice side lobes adding out of phase can reduce the heights of the peaks

Windowed Signal

Short transient signals in the time domain produce high, broadband frequency content.

sharpTransient

To reduce leakage, a mathematical function called a window is applied to the data. Windows are designed to reduce the sharp transient in the re-created signal as much as possible.

windowedsignal

Because the sharp transients are reduced and smoothed, the broadband frequency of the spectral leakage is also reduced.

Periodic versus Non-Periodic Background

When performing a Fourier Transform on measurement data, a window affects periodic and non-periodic data differently:

  • Periodic (No Window needed): A signal captured in a periodic manner does not require a window, and a resulting Fourier Transform has no leakage. Applying a window alters the resulting Fourier transform, and even creates spectral leakage where there would have been no leakage otherwise.

  • Non-periodic (Window needed): Windows are used on signals that are captured in a non-periodic manner to reduce spectral leakage and get closer to the periodic results. A window can minimize the leakage present in a non-periodic signal, but cannot eliminate it.

The signal is repeated and appended mathematically because the measured data is assumed to be representative of the entire original signal

Periodic

When a measurement signal is captured in a periodic manner, the Fourier Transform of the captured signal will have no leakage in the frequency domain.

A window is not recommended for a periodic signal as it will distort the signal in an unnecessary manner, and actually creates spectral leakage.

captured-periodic

Non-periodic

The same sine wave, with a different measurement time, results in a non-periodic captured signal. Here, when the captured signal is repeated, the original sine wave signal is not re-created.

captured-nonperiodic

In fact, several broadband transient events (circled in red) are introduced. These transients create a broadband response, or leakage.

Windows are used to minimize this leakage effect in the frequency domain.

leakage-vs-nonleakage

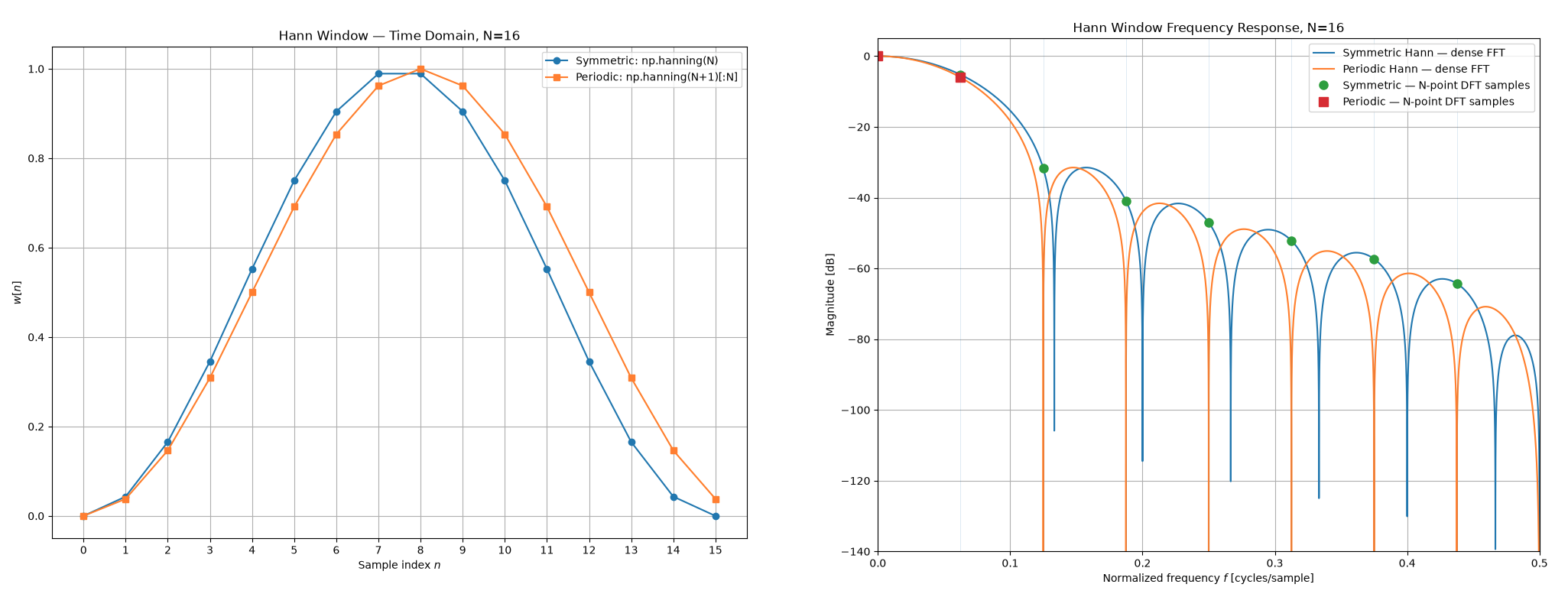

Hanning

When doing operational noise and vibration measurements, the Hanning window is commonly used.

Random data has spectral leakage due to the abrupt cutoff at the beginning and end of the time block. It is non-periodic.

There is no way to ensure that the captured random signal is periodic by varying the measurement time.

Hanning windows are often used with random data because they have moderate impact on the frequency resolution and amplitude accuracy of the resulting frequency spectrum.

  • The maximum amplitude error of a Hanning window is 15%

    In the cited article, all spectral data had an amplitude correction factor applied.

  • while the frequency leakage is typically confined to 1.5 spectral lines to each side of the original sine wave signal


periodic signal

Applying the Hanning window (or any window) to a periodic signal creates leakage.

hanning-periodicsignal

The periodically captured sine wave with the Hanning window (blue) is wider in frequency than the original signal (red)

In the figure, the sine wave with the Hanning window (blue) is wider in frequency than the original signal (red).

non-periodic signal

When a Hanning window is applied to a non-periodic signal, the leakage is greatly reduced and the amplitude is higher.

hanning-nonperiodicsignal

A non-periodically captured sine wave (magenta) has a spectral leakage over the entire bandwidth, applying a Hanning window minimized the leakage (green)

RMS calculation

A RMS calculation sums up the energy within a frequency range.

rms-cal

  • both the RMS of the periodic and non-periodic signals with a Hanning window are equal to the RMS of the leakage-free sine wave.

  • Only the RMS of the non-periodic sine wave without a window applied is not equal to the others

With the leakage spread over a smaller frequency range, doing analysis calculations like RMS yields more accurate results.

Flattop

  • The Flattop window has a better amplitude accuracy in frequency domain compared to the Hanning window,

    The maximum amplitude error of a Flattop window is less than 0.01%. By contrast, the Hanning window maximum amplitude error is 15%.

  • A Flattop window confines leakage to 3.43 spectral lines to each side of the original signal.

amplitude errors

These maximum amplitude errors assume that amplitude correction factors are applied to the frequency spectrums. These amplitude correction factors compensate for any reduction caused by applying a window.

flattop-amplitude

leakage

The frequency accuracy of the Flattop window is more coarse compared to a Hanning window. As a result, the Flattop window is typically employed on data where frequency peaks are distinct and well separated from each other.

flattop-leakage

When the frequency peaks are not guaranteed to be well separated, the Hanning window is preferred because it is less likely to cause individual peaks to be lost in the spectrum

flattop-2tone

Spectrum of two periodically captured tones that are \(4Hz\) apart with a \(1Hz\) frequency resolution. The spectrum with a Hanning window (green) shows two peaks while the spectrum with a Flattop window (blue) shows one peak.

Note that at the original frequencies of the tones the amplitude is correct and equal to one for both windows.

One common application for a flattop window is performing calibration. For example, a sound pistonphone only produces one single and distinct frequency during microphone calibration.

Uniform

A Uniform window has a value of 1.0 across the entire measurement time. In reality, a Uniform window could be called no window.

Depending on the data acquisition system used, sometimes the term Rectangular window is also used.

  • A Uniform window creates no frequency or amplitude distortion when the measured signal is periodic.

  • When a measured signal is not periodic, the amplitude is reduced by a maximum of 36% and the frequency content is spread over the entire bandwidth of the measurement.

    This is due to sharp transients that are created by repeating and appending the measured signal.

Whenever a measurement signal is periodic, a Uniform window is preferred.

Applying a Hanning or Flattop window to a periodic signal will actually create amplitude and frequency distortion.

uniformwindow

Benefit of Reducing Leakage

The benefit is not that the captured signal is perfectly replicated.

The main benefit is that the leakage is now confined over a smaller frequency range, instead of affecting the entire frequency bandwidth of the measurement.

With the leakage spread over a smaller frequency range, doing analysis calculations like RMS yields more accurate results.

rms-windowed

It is impossible to calculate the proper RMS amplitude estimate over a limited frequency range of the un-windowed sine wave, since the leakage is over the full frequency range. Therefore the RMS amplitude is not correct.

Two tones

In the case of two closely spaced sine tones, without a window being applied, two tones frequencies would leak into each other, which make determining the true amplitude of individual peaks very difficult.

The window makes it easier to separate and distinguish each tone so a proper analysis could be performed.

windowed-2tone

window function in frequency domain

The transfer function \(a(f)\) of a window \(w_j, j \in [0, N-1]\) expresses the response of the window to a sinusoidal signal at an offset of \(f\) frequency bins, i.e. DFT .

real part: \[ a_r(f)=\sum_{j=0}^{N-1}w_j\cos (2\pi f j/N) \]

imaginary part: \[ a_i(f)=\sum_{j=0}^{N-1}w_j\sin (2\pi f j/N) \]

frequency response can be obtained as \[ a(f) = \frac{\sqrt{a_r^2+a_i^2}}{S_1} \] where \(S_1 = \sum _{k=0}^{N-1}w_k\)

rectangle window example

aka. Uniform window, "Rectangular" window, "no window"

Whenever a measurement signal is periodic, a Uniform window is preferred. Applying a Hanning or Flattop window to a periodic signal will actually create amplitude and frequency distortion.

  1. When \(f=0\)

\[ a_r(f) + ja_i(f) = \sum_{k=0}^{N-1}w_k = N \]

  1. When \(f \neq 0\)

\[\begin{align} a_r(f) + ja_i(f) &= \sum_{k=0}^{N-1} e^{\frac{j2\pi k f}{N}} \\ &= \sum_{k=0}^{N/2} e^{\frac{j2\pi k f}{N}} + e^{\frac{j2\pi (k+N/2) f}{N}} \\ &= \sum_{k=0}^{N/2} e^{\frac{j2\pi k f}{N}} + e^{j\pi} e^{\frac{j2\pi k f}{N}} \\ &= \sum_{k=0}^{N/2} e^{\frac{j2\pi k f}{N}} - e^{\frac{j2\pi k f}{N}} \\ &= 0 \end{align}\]

A Uniform window creates no frequency or amplitude distortion when the measured signal is periodic.

However, if the signal cannot be guaranteed to be periodic, a Uniform window should be avoided.

Window Properties

There is no possibility of trade-off between main-lobe width and sied-lobe amplitude, since the window length is the only variable parameter.

The rectangular window has the narrowest main lobe for a given length, i.e. \(\Delta _{ml}=4\pi/L\)

Other windows include the Bartlett, Hann, and Hamming windows. The DTFTs of all these windows have main-lobe width \(\Delta _{ml}=8\pi/(L-1)\), which is approximately twice that of the rectangular window, but they have significantly smaller side-lobe amplitudes.

Demo

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
clc;
clear all;

N = 512;
fs = 40*1e3; % 40kHz
fres = fs/N; % 78.125
tt = (0:N-1)*1/fs;
ff = (0:N/2)*fres;
fin = 390.625;

whan = hanning(N); % hanning window
wrect = rectwin(N); % rect window


% fin/fs = 5/N, periodically captured sine wave
wv = cos(2*pi*fin*tt);
power = periodogram(wv, whan, N, fs, 'power');
X = (power).^0.5*2^0.5;
psd = periodogram(wv, whan, N, fs, 'psd');
rms = sum(psd*fres)^0.5;
fprintf('RMS@periodic & hanning: %.5f\n', rms);

power_rect = periodogram(wv, wrect, N, fs, 'power');
X_rect = (power_rect).^0.5*2^0.5;
psd_rect = periodogram(wv, wrect, N, fs, 'psd');
rms_rect = sum(psd_rect*fres)^0.5;
fprintf('RMS@periodic & rect: %.5f\n', rms_rect);


figure(1)
plot(ff, X, 'r-o', ff, X_rect, 'b-s');
xlabel('Frequency(Hz)');
ylabel('|X|')
title('Amplitude spectrum of periodically captured sine wave');
legend('w/ hanning', 'w/ rect');
grid on
grid minor
% rectangular window provide higher frequency resolution
% hanning window induce leakage for the periodically captured sine wave



% fin - 0.5fres
fin_lkg0d5 = fin - 0.5*fres;
wv_lkg0d5 = cos(2*pi*fin_lkg0d5*tt);
power_lkg0d5 = periodogram(wv_lkg0d5, whan, N, fs, 'power');
X_lkg0d5 = (power_lkg0d5).^0.5*2^0.5;
psd_lkg0d5 = periodogram(wv_lkg0d5, whan, N, fs, 'psd');
rms_lkg0d5 = sum(psd_lkg0d5*fres)^0.5;
fprintf('RMS@-0.5fres & hanning: %.5f\n', rms_lkg0d5);

power_lkg0d5_rect = periodogram(wv_lkg0d5, wrect, N, fs, 'power');
X_lkg0d5_rect = (power_lkg0d5_rect).^0.5*2^0.5;
psd_lkg0d5_rect = periodogram(wv_lkg0d5, wrect, N, fs, 'psd');
rms_lkg0d5_rect = sum(psd_lkg0d5_rect*fres)^0.5;
fprintf('RMS@-0.5fres & rect: %.5f\n', rms_lkg0d5_rect);

figure(2)
plot(ff, X_lkg0d5, 'r-o', ff, X_lkg0d5_rect, 'b-s');
xlabel('Frequency(Hz)');
ylabel('|X|')
title('Amplitude spectrum of -0.5fres');
legend('w/ hanning', 'w/ rect');
grid on
grid minor
% hanning reduce leakage and max amplitude error 15%



% fin - 0.25fres
fin_lkg0d25 = fin - 0.25*fres;
wv_lkg0d25 = cos(2*pi*fin_lkg0d25*tt);
power_lkg0d25 = periodogram(wv_lkg0d25, whan, N, fs, 'power');
X_lkg0d25 = (power_lkg0d25).^0.5*2^0.5;
psd_lkg0d25 = periodogram(wv_lkg0d25, whan, N, fs, 'psd');
rms_lkg0d25 = sum(psd_lkg0d25*fres)^0.5;
fprintf('RMS@-0.25fres & hanning: %.5f\n', rms_lkg0d25);

power_lkg0d25_rect = periodogram(wv_lkg0d25, wrect, N, fs, 'power');
X_lkg0d25_rect = (power_lkg0d25_rect).^0.5*2^0.5;
psd_lkg0d25_rect = periodogram(wv_lkg0d25, wrect, N, fs, 'psd');
rms_lkg0d25_rect = sum(psd_lkg0d25_rect*fres)^0.5;
fprintf('RMS@-0.25fres & rect: %.5f\n', rms_lkg0d25_rect);

figure(3)
plot(ff, X_lkg0d25, 'r-o', ff, X_lkg0d25_rect, 'b-s');
xlabel('Frequency(Hz)');
ylabel('|X|')
title('Amplitude spectrum of -0.25fres');
legend('w/ hanning', 'w/ rect');
grid on
grid minor
% hanning reduce leakage

output

1
2
3
4
5
6
RMS@periodic & hanning: 0.70711
RMS@periodic & rect: 0.70711
RMS@-0.5fres & hanning: 0.70711
RMS@-0.5fres & rect: 0.70711
RMS@-0.25fres & hanning: 0.70711
RMS@-0.25fres & rect: 0.70780

image-20230526005823613

rectangular window provide higher frequency resolution

image-20230526005934411

hanning reduce leakage and max amplitude error 15%

image-20230526010047826

hanning reduce leakage and reduce amplitude error

reference

Windows and Spectral Leakage. URL:https://community.sw.siemens.com/s/article/windows-and-spectral-leakage

Article (20416822) Title: How to Utilize a Windowing Technique for Accurate DFT URL: https://support.cadence.com/apex/ArticleAttachmentPortal?id=a1Od000000050UrEAI

B.P. Lathi, Roger Green. Linear Systems and Signals (The Oxford Series in Electrical and Computer Engineering) 3rd Edition

Window Types: Hanning, Flattop, Uniform, Tukey, and Exponential URL:https://community.sw.siemens.com/s/article/window-types-hanning-flattop-uniform-tukey-and-exponential

Window Correction Factors URL:https://community.sw.siemens.com/s/article/window-correction-factors

Root Mean Square (RMS) and Overall Level. URL:https://community.sw.siemens.com/s/article/root-mean-square-rms-and-overall-level

Alan V Oppenheim, Ronald W. Schafer. Discrete-Time Signal Processing, 3rd edition

Stefan Scholl, "Exact Signal Measurements using FFT Analysis",Microelectronic Systems Design Research Group, TU Kaiserslautern, Germany. [ pdf ]

Harris, F. (1978). On the use of windows for harmonic analysis with the discrete Fourier transform. Proceedings of the IEEE, 66, 51-83. [pdf]

Equivalent noise bandwidth (ENBW) of window functions URL:https://www.gaussianwaves.com/2020/09/equivalent-noise-bandwidth-enbw-of-window-functions/

Why should I zero-pad a signal before taking the Fourier transform? URL:https://dsp.stackexchange.com/q/741

enbw function in MATLAB URL:https://www.mathworks.com/help/signal/ref/enbw.html

Window function – figure of merits URL:https://www.gaussianwaves.com/2020/09/window-function-figure-of-merits/

Memos on FFT With Windowing URL:https://a2d2ic.wordpress.com/2018/02/01/memos-on-fft-with-windowing/

Jens Ahrens, "Some Notes on Windows in Spectral Analysis," Tech. Report, Chalmers Univeristy of Technology, 2020. URL:https://appliedacousticschalmers.github.io/scaling-of-the-dft/notes_on_windows/
